Production Line Load Testers

Production Line Load Testers

Features

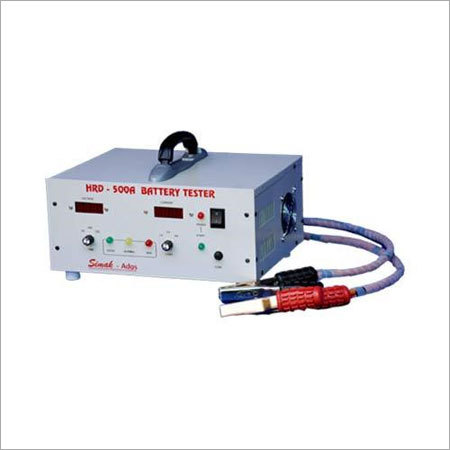

Simak—Ados  is  state of the art solid state battery  load tester. It can be used contineously  without  rest so that  new  charged  batteries can be tested at strech.  the  12V  charged  new batteries are tested at 3 times the AH rating of battery for CSHORTC duration. It has two  3sec./ 5 sec. settings for the test.

During the test the terminal voltage of the battery is monitored. If the internal resistance of  the  battery  is high or there is poor welding the terminal voltage will drop below healthy level. this voltage will be  compared and the result good/ or bad will be displayed by the tester.The tester has digital volt and current meters.

The tester is designed to test the new charged batteries, its major use is to test.
1.any welding problem
2.high internal resistance

Standard  Model  Available
S—60        12V / ( 50A/300A/450A/600A )

( Other rating available as per specifications.)
