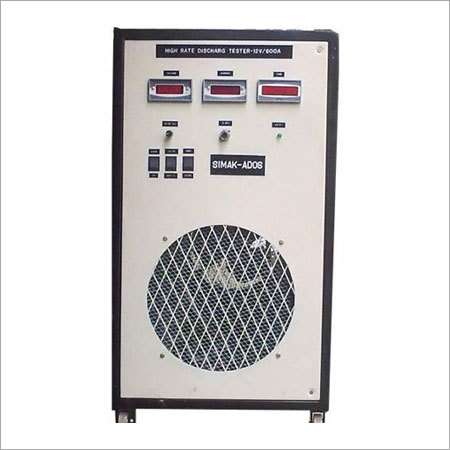

High Rate Discharge Tester

High Rate Discharge Tester
High Rate Discharge Tester
Product Code : 08
Product Description

Battery High Rate Dischargers

High Rate Discharger-12V /600Amps (HRD-600)


  • Fully  solid  state
  • Fully  automatic
  • Constant  current  dischsrge
  • Computr  interface

Simak Ados HRD 600 is fully solidstate microcontroller  based technology. It is used to perform the cranking test of various types and ratings of batteries. the current can be adjusted from 0  to 600 Amps. by a pot on the front panel of the tester. EODV ( end of discharge voltage ) can also be adjusted from the front panel.It discharges the battery at constant current till EODV. It has digital time totaliser  and displays the the discharge time.It has digital volts and current meter to show battery voltage and current.

The HRD tester can be interfaced to computer  by 232 port.  all the readings during the test are displayed and recorded in the computer directly.

It  can  record voltage , current,  time  and temperature of the battery.

Standard  models  available:

12V / 600 Amps.
12V / 1000 Amps
12V / 1500 Amps

Other ratings are available  as per specifications.
